STATIONARY VANE ANEMOMETER
MPP
Anemometer type MPP is a stationary measurement device
intended for measurements of air flow in venting systems of
underground mining enterprises as well as surface industry.
Vane detector is used as a measuring element in the
anemometer. This device is able to detect direction of flow.
Device can cooperate with measurement data transmission
systems equipped with various electric standards of
transmission. It is possible to define operation in the following
systems:
• frequency 8 - 10 - 12 kHz,
• voltage 0.4 - 1,2 - 2.0 V,
• current 4 -12 - 20 mA,
• digital RS-485.

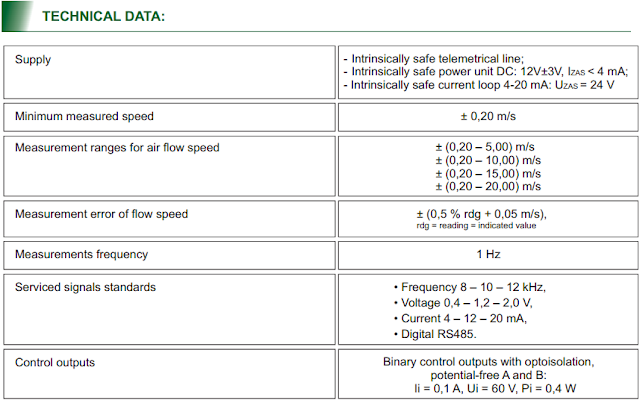

Measurement range of the instrument is equal to
±0,20 ¸ 20,00 m/s. There is a possibility to select other, smaller
ranges of measured speeds, according to the technical data.
Anemometer type MPP is a stationary measurement device
intended for measurements of air flow in venting systems of
underground mining enterprises as well as surface industry.
Vane detector is used as a measuring element in the
anemometer. This device is able to detect direction of flow.
Device can cooperate with measurement data transmission
systems equipped with various electric standards of
transmission. It is possible to define operation in the following
systems:
• frequency 8 - 10 - 12 kHz,
• voltage 0.4 - 1,2 - 2.0 V,
• current 4 -12 - 20 mA,
• digital RS-485.
Measurement range of the instrument is equal to
±0,20 ¸ 20,00 m/s. There is a possibility to select other, smaller
ranges of measured speeds, according to the technical data.
COOPERATION WITH EXTERNAL
MONITOR (DISPLAY)
DATA ARCHIVING OPTION AND
COMMUNICATION WITH COMPUTER FOR ANALYSIS OF
GATHERED MEASUREMENT RESULTS
GATHERED MEASUREMENT RESULTS
POSSIBILITY OF COOPERATION
WITH OTHER AUTOMATIC METHANE DETECTION SYSTEMS
e.g.:KSP-2; KSP-2C, KSP-3
e.g.:KSP-2; KSP-2C, KSP-3
Moreover the anemometer is equipped
with two binary, potential-free, galvanically isolated outputs allowing
control of external devices. In case when digital output RS 485 is used, the measurement data can be
transmitted also to the external display.
Digital output is intended for setting by the user selected parameters of operation of the anemometer also for
service purposes. Characteristic feature of the anemometer is a possibility to record measurement data in the
memory, after braking of the transmission-supply line.
Real time of carried out measurements and ambient temperature (option) are recorded except measurement
data. This operation mode can be used for autonomous measurements of speed in locations without
possibility of connection to transmission-supply network.
control of external devices. In case when digital output RS 485 is used, the measurement data can be
transmitted also to the external display.
Digital output is intended for setting by the user selected parameters of operation of the anemometer also for
service purposes. Characteristic feature of the anemometer is a possibility to record measurement data in the
memory, after braking of the transmission-supply line.
Real time of carried out measurements and ambient temperature (option) are recorded except measurement
data. This operation mode can be used for autonomous measurements of speed in locations without
possibility of connection to transmission-supply network.
