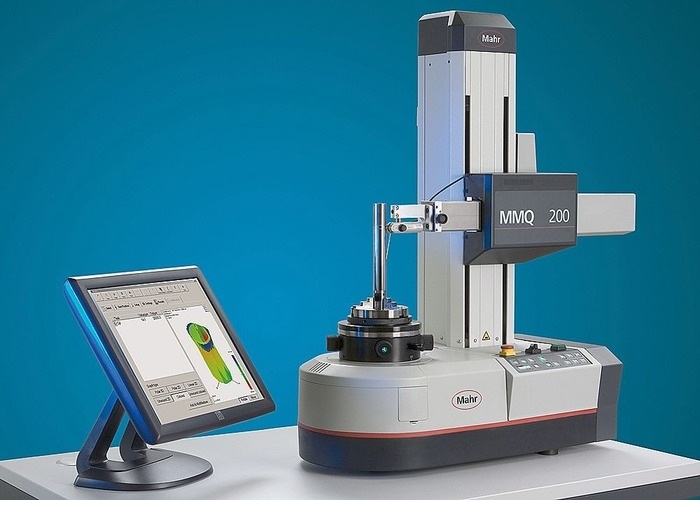

Roundness measuring instrument
MAHR
Ease of operation makes Mahr Federals MMQ 200 ideal for use by machine operators right in production areas where immediate measurements can minimize scrap, save time, and reduce production costs. Optimized for the measure of cylindricity through rotational table axis and vertical axis integration, the MMQ 200 can also perform a full range of ISO and/or ASME form checks, including: roundness, straightness, flatness (from a polar trace), parallelism, concentricity, coaxiality, run-out, total run-out, taper, perpendicularity, angularity, and angle sector (roundness, flatness, run-out).
Key features of the MMQ 200 include: three motorized axes, with both measuring axes (C and Z) optimized for high precision; computer and graphic-assisted test piece alignment on the manual tilting and centering table; universal T20W test probe with a 2 mm working range, stroke limitation, and mechanical probe zenith setting for high-precision measurements; EasyForm measuring, control and evaluation software; a Pentium-class PC using Windows XP Professional; and a 15" touch-screen monitor.
Like the other members of the MMQ family, the MMQ 200 requires no outside air supply. The high-precision mechanical bearings used in the rotary table are more accurate than most air bearings and up to 70 times stiffer, making the system less susceptible to external forces such as vibration which is critical for operation in real world production environments.
* Flatness of the supporting surface is in accordance to DIN 876/1
* Both tail stocks can be moved / adjusted

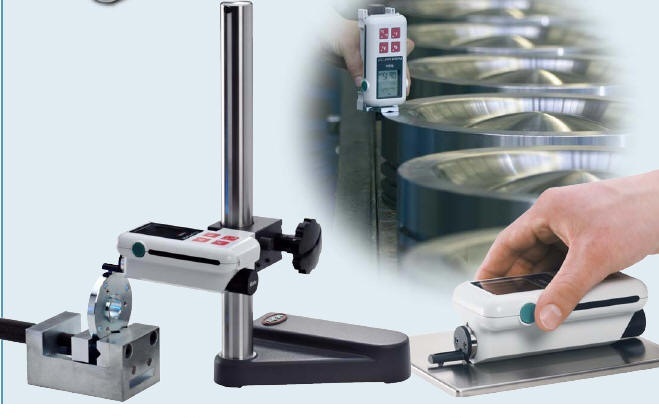

Surface measuring machine
MAHR
* Quick & Easy
is Mahr specific operation help for quick and simple operation convenience
* You do not have to be afraid of the high performance level! Clear symbols are self-explanatory!
* The measuring station for laboratory and production line. Manifold configurations possible which opens ways into the huge world of micro dimensions in surface metrology
* Quick & Easy
is Mahr specific operation help for quick and simple operation convenience
* You do not have to be afraid of the high performance level! Clear symbols are self-explanatory!
* The measuring station for laboratory and production line. Manifold configurations possible which opens ways into the huge world of micro dimensions in surface metrology
