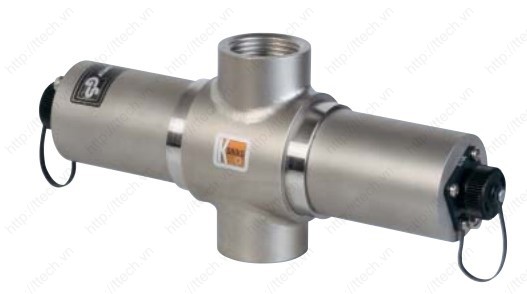

Turbidity Meter ATA-K
Absorbtion method (infrared) |
Measuring range |
0...4 CU |
Connections |
DIN-/ ANSI-flange, NPT, BSP-thread, hygenic connection |
Material |
st. st. |
Max. pressure |
16 bar |
Max. temperature |
0...10°C (short-time 120°C) |
Measuring Accuracy |
+/-2% FS |
Output |
4...20 mA, 2 limit switches |
|
 |

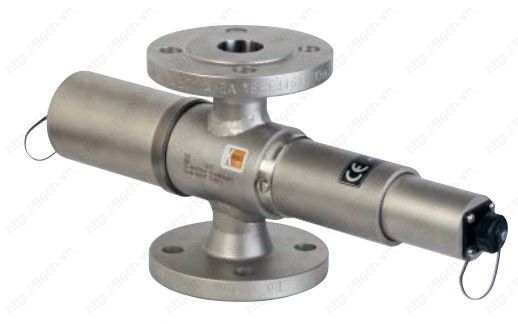

Turbidity Meter ATS-K
Dual Light Scattering-method (11°) |
Measuring range |
0...500 ppm |
Connections |
DIN-/ ANSI-flange, NPT, BSP thread, hygenic connection |
Material |
st. st. |
Max. pressure |
16 bar |
Max. temperature |
0...190°C |
Measuring Accuracy |
+/- 2% FS |
Output |
4...20 mA, 2 limit switches |
|
 |

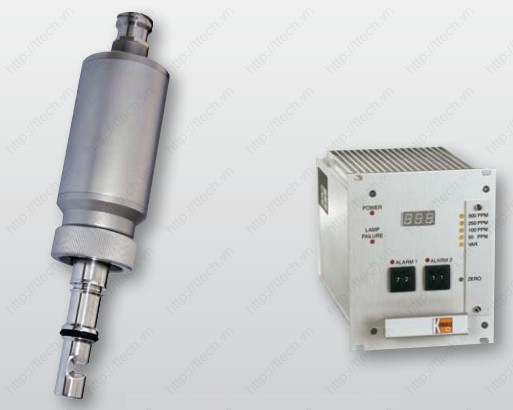

Turbidity Meter ATL
Measuring range |
0...3 CU |
Connections |
DIN-/ ANSI-flange, NPT, BSP thread, hygenic connection |
Material |
st. st. |
Max. pressure |
10 bar |
Max. temperature |
0...100°C |
Output |
4...20 mA, 2 limit switches |
|
