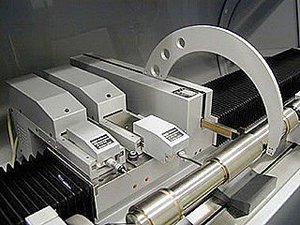

Máy đo trục cam WMM Series
- Fully integrated CNC rotation axis SK40, SK50 or HSK63
- Incident illumination for the measurement of grooves, oil gallery bores, blind holes, and milling contours
- Touch-trigger or scanning probe allowing measurement of special shapes, such as gear teeth, non-cylindrically symmetric contours, impeller wheels etc.
- Digitisation and BestFit
- Wide variety of clamping devices, such as dead and live centres, precision jaw chucks, precision collet chucks, hollow centres, etc.
- Measuring range of up to 1200 mm in length, and up to 400 mm in diameter
- Ultra-fast measuring technique due to triggered data acquisition by means of a high-resolution CCD matrix camera
- Highly accurate measurement also of lengths by means of a contour focussing element, even beyond the central axis
- Teach-in programming
- Automatic generation of measurement reports, graphical measurement reports, and first-sample test reports in accordance with VDA (Association of the German Automotive Industry)
- High measuring accuracy and precision
- Easy operation
- Outstanding measuring speed
- Excellent data reporting
- Ergonomic design with optimum accessibility
